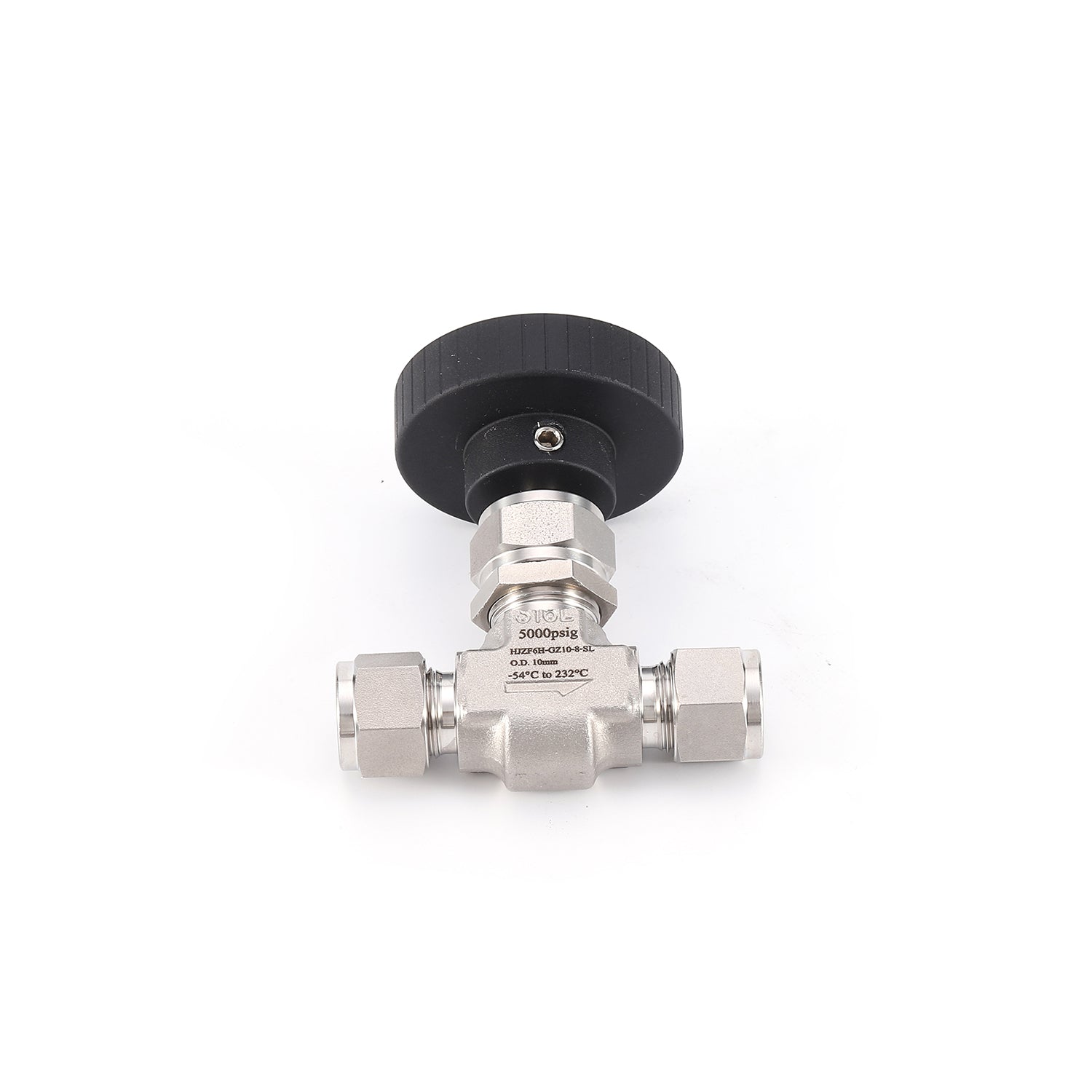

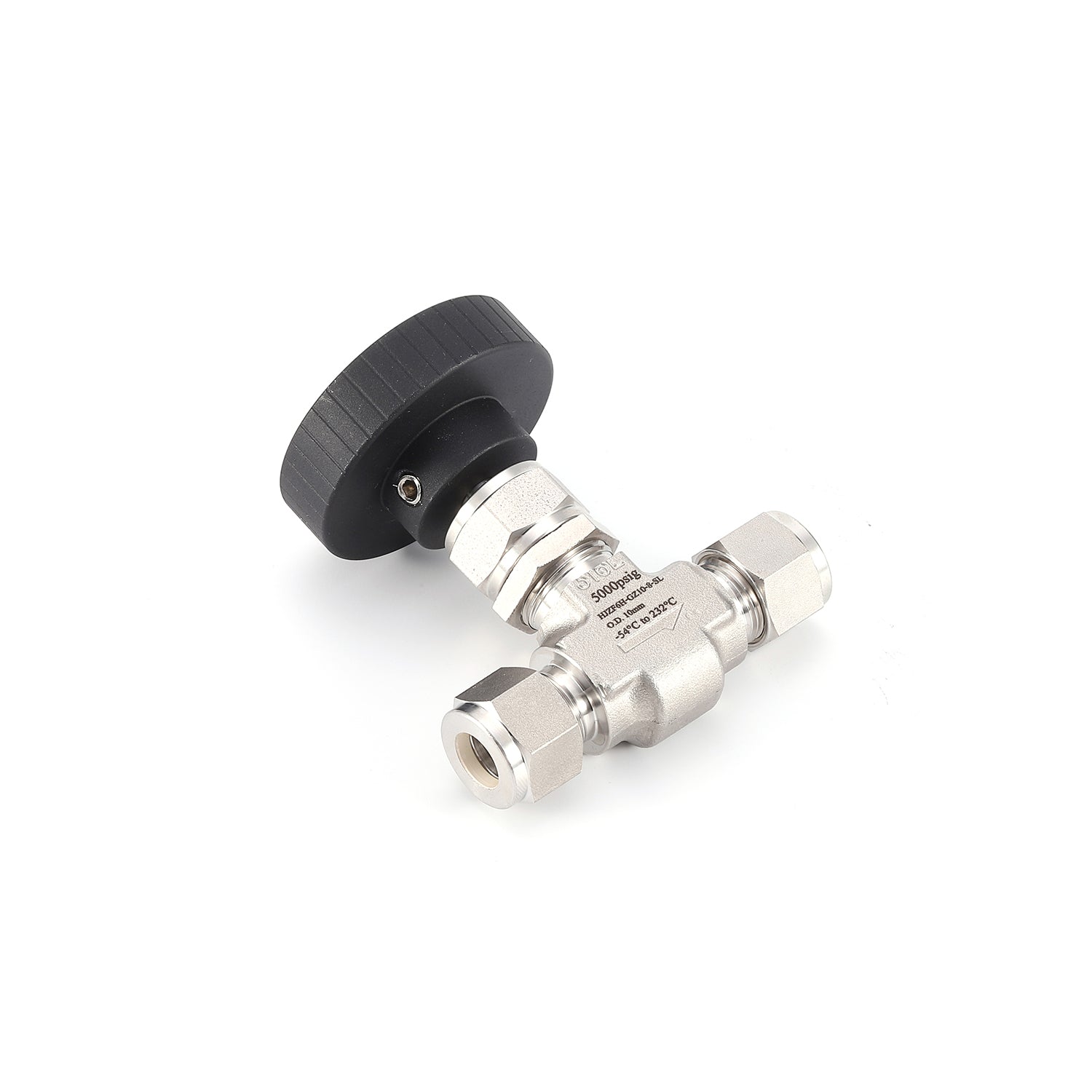

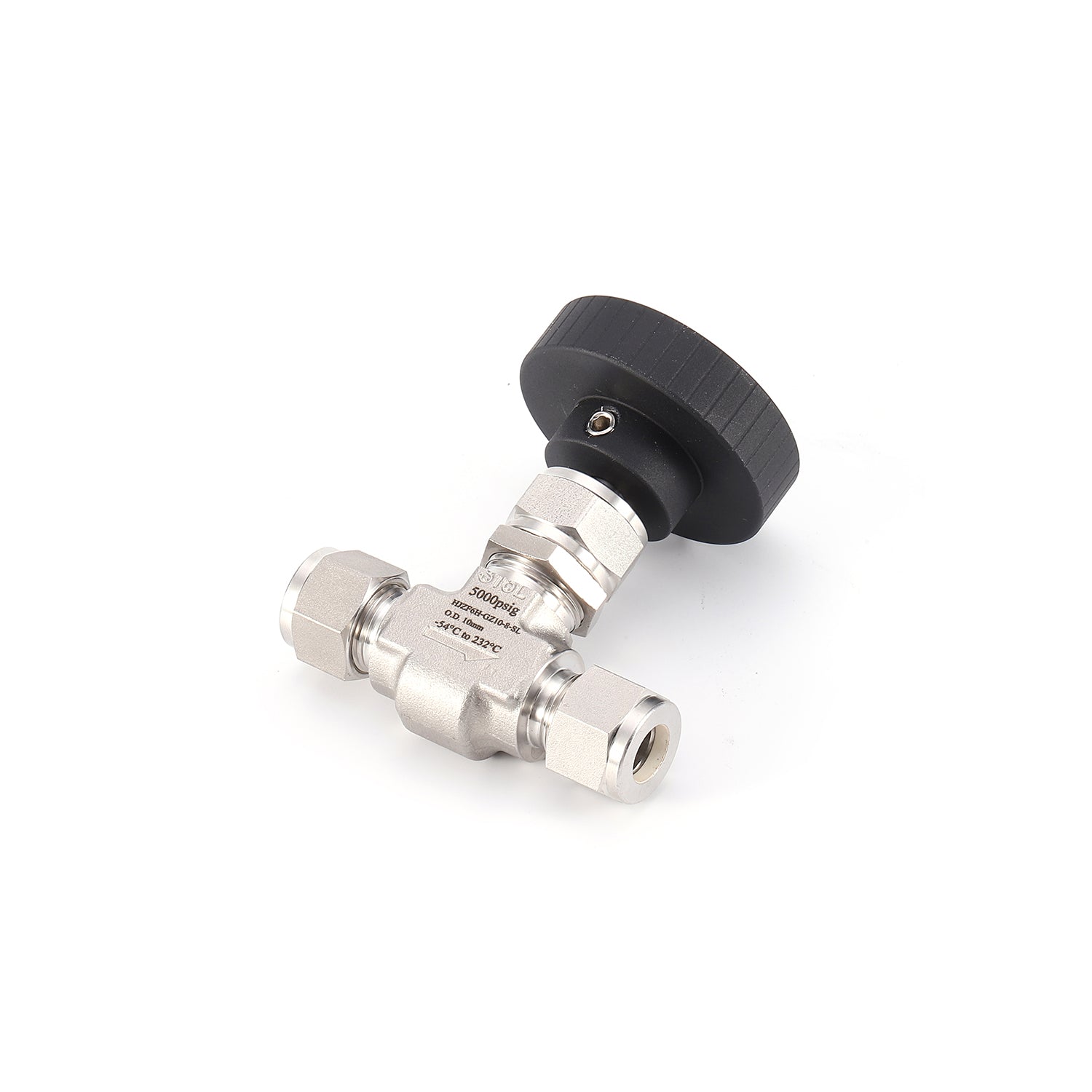

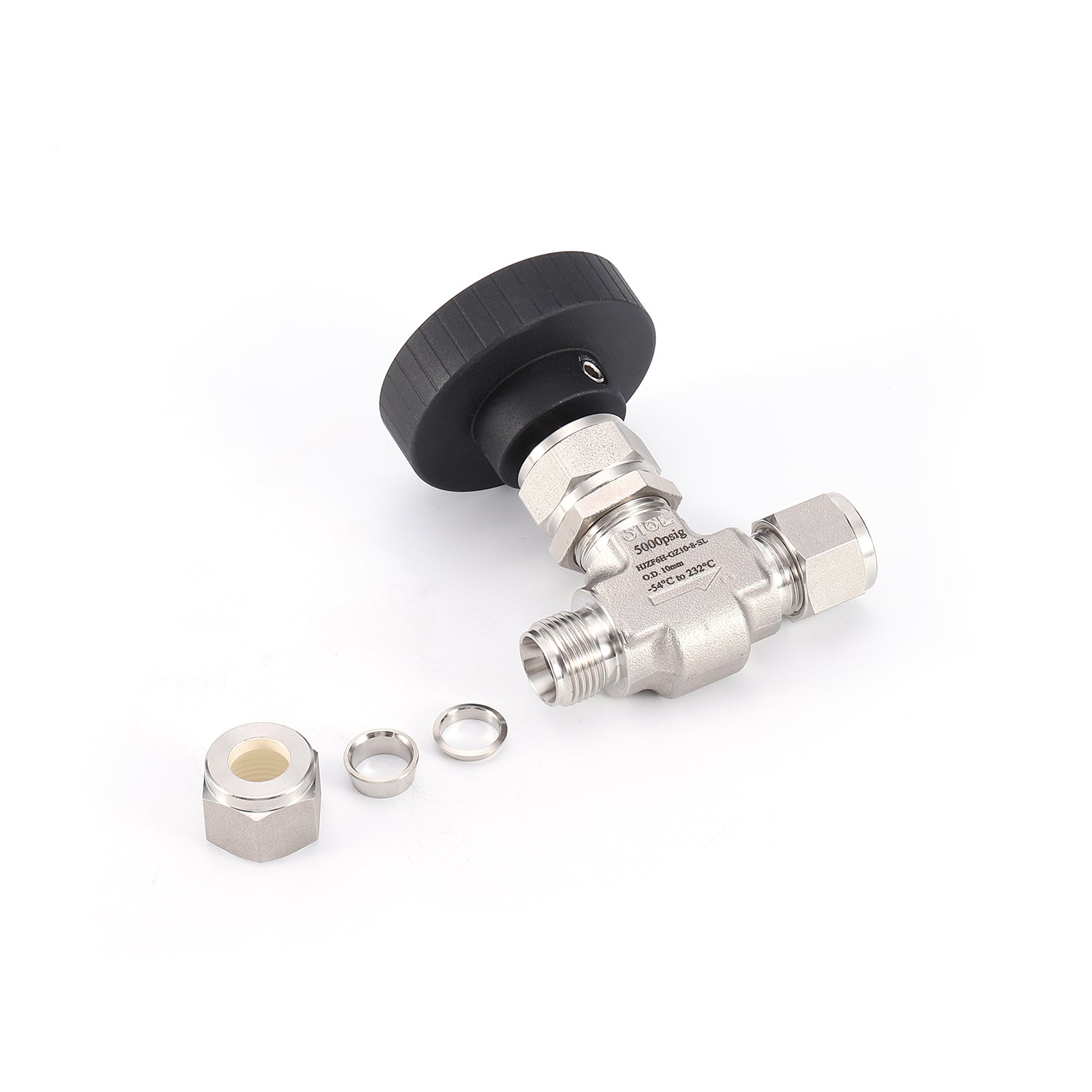

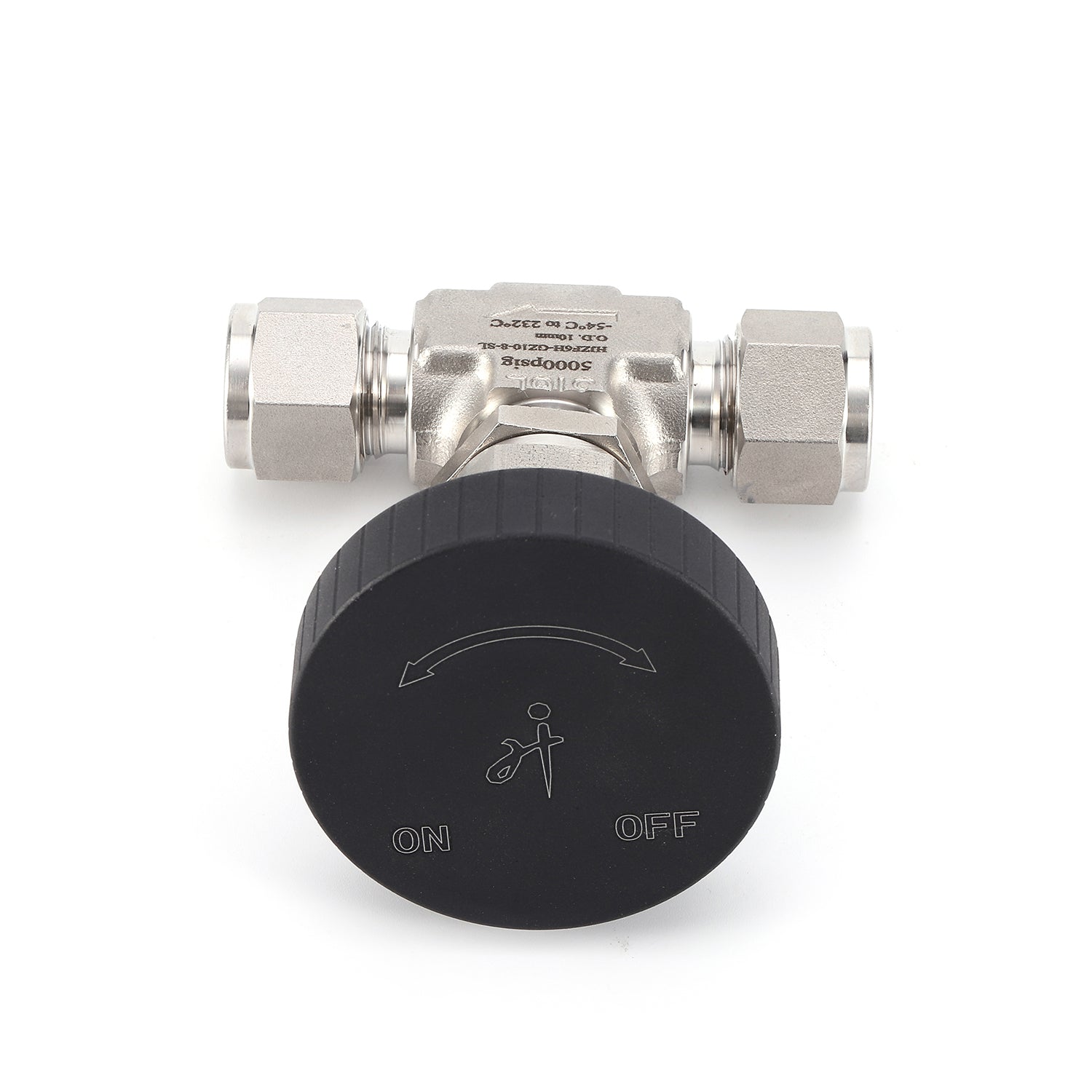

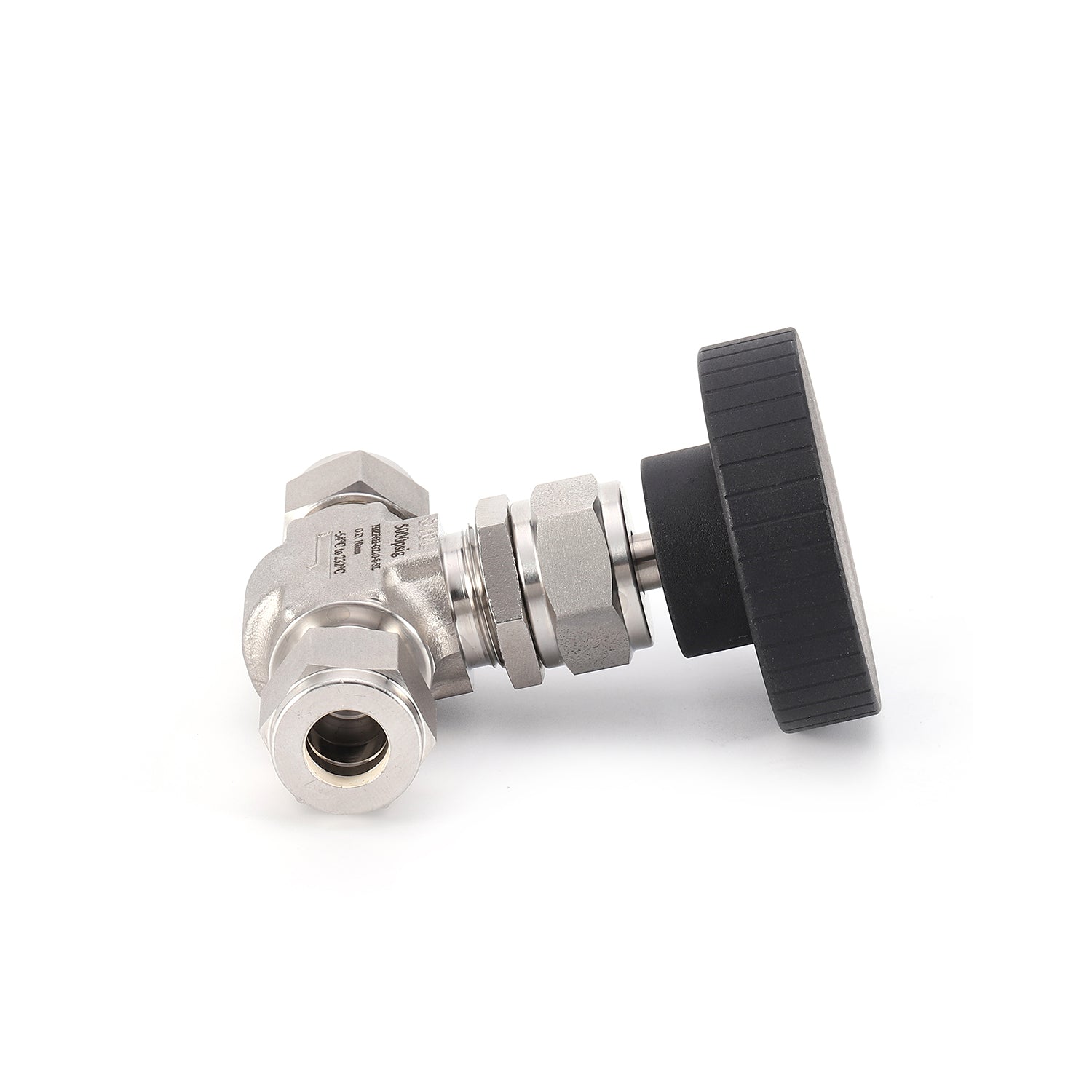

Hongji ZF6 Series Needle Valve Thread Type
The photos are intended to showcase the appearance and shape of the product, rather than its dimensions.
SKU:HJZF6H-FNPT4-8-SS
1000 in stock
Name: Hongji ZF6 Series Needle Valve Thread Type
Body Material: SS316
Type of Connection: Thread
Seal Type: Hard Sealing
Working Pressure: 3000Psi – 6000Psi(207 Bar – 414 Bar)
Working Temperature: PTFE packing: -65 °F to 450 °F (-54 °C to 232 °C)
Graphite packing: -65 °F to 1200 °F (-54 °C to 649 °C)
Medium: Liquid, Gas, Steam, Oil
Packing Material: PTFE/ Graphite
Flow Pattern: 2-Way, Straight
Manufacturing Standards:
Bar Stock Machining
Non-rotating stem Design tominimize the abrasio
1.5 Times Hydraulic Test Of Design Pressure
Applied Standard: SAE J1926-3, ASME B1.20.1 SAE AS71051
Remark：
Contact us for custom configurations. Please contact our professional sales consultant for uncleared techanical issues.
Small quantity: Recycled carton box.
Big quantity: Plywood case.
Bulk orders: Custom palletization available.
