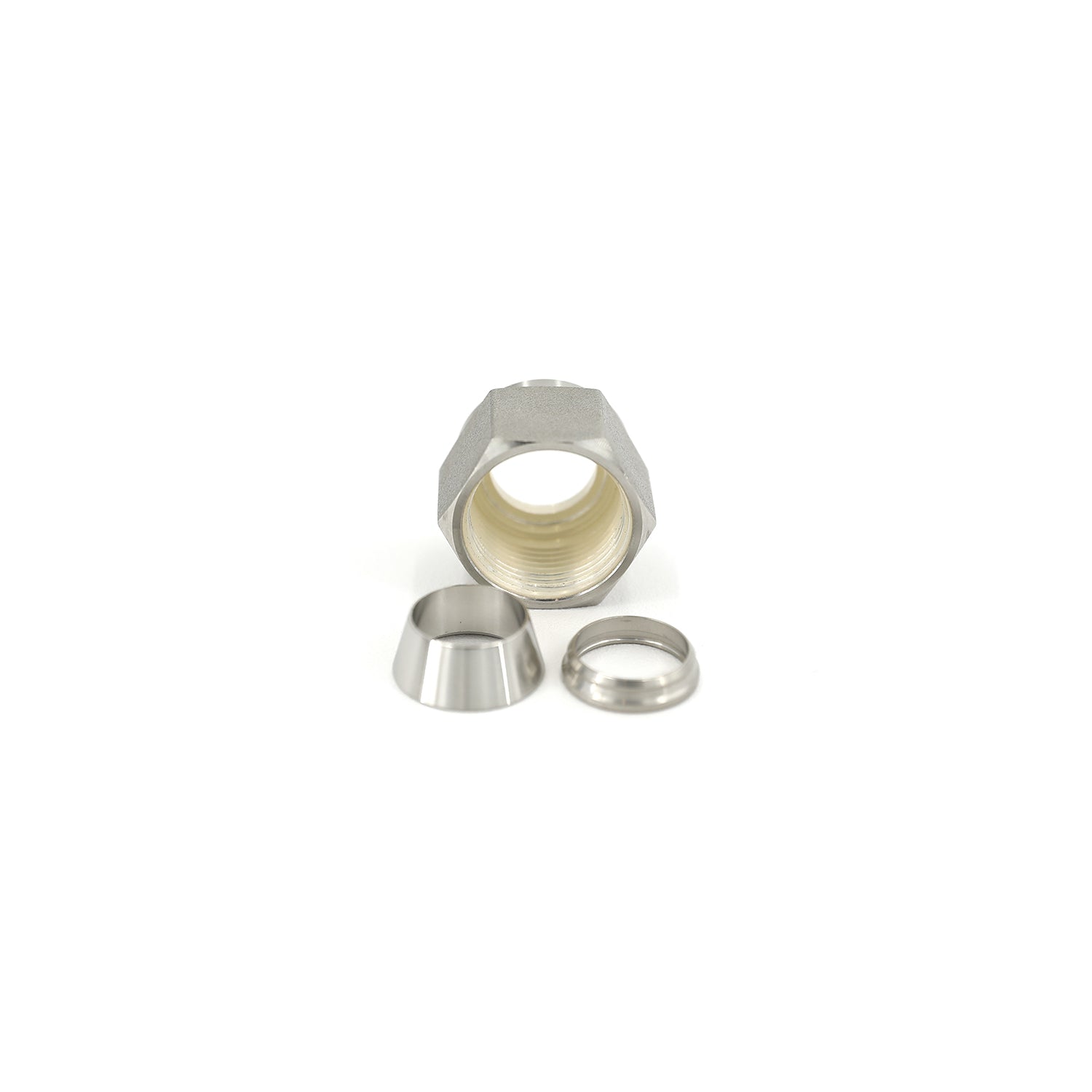

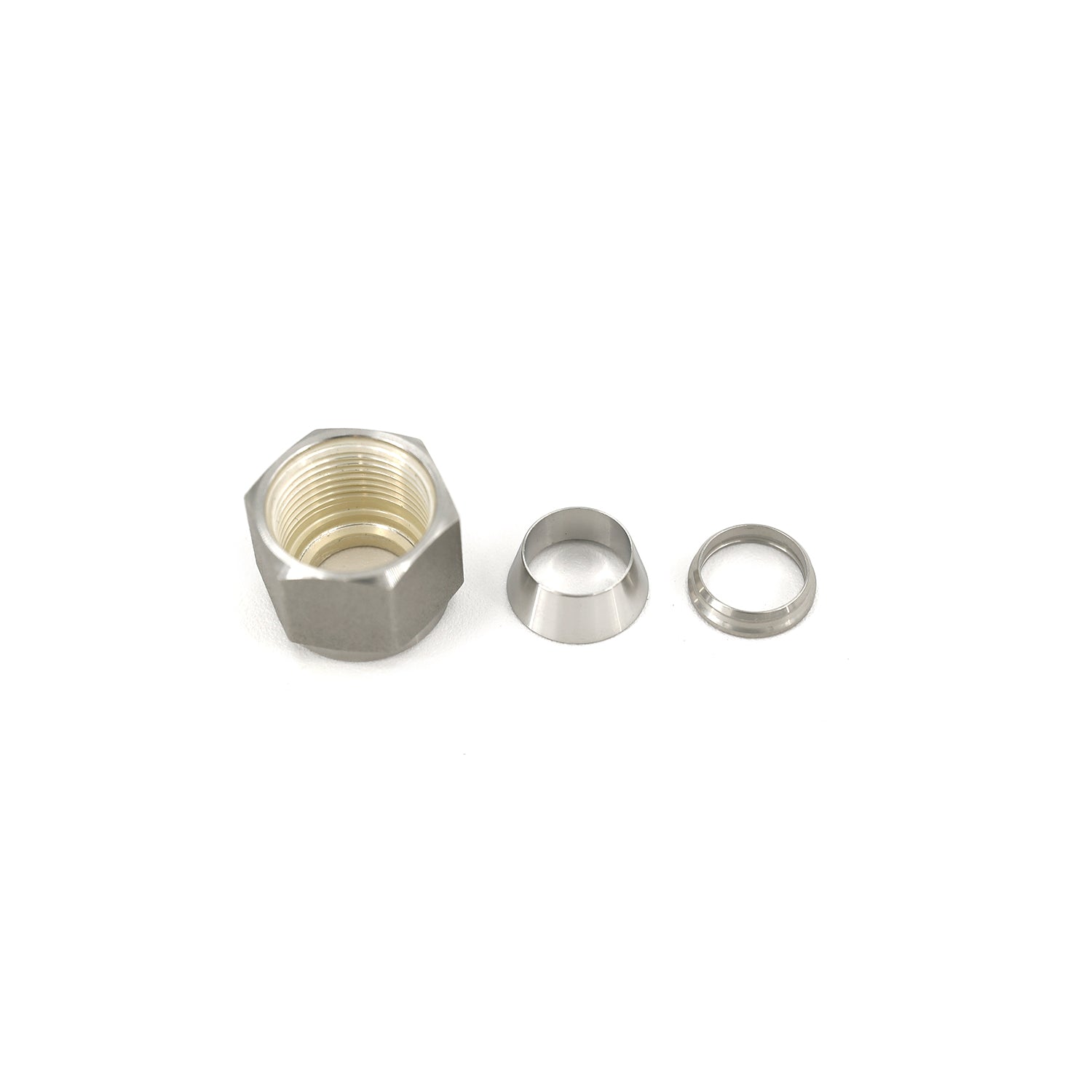

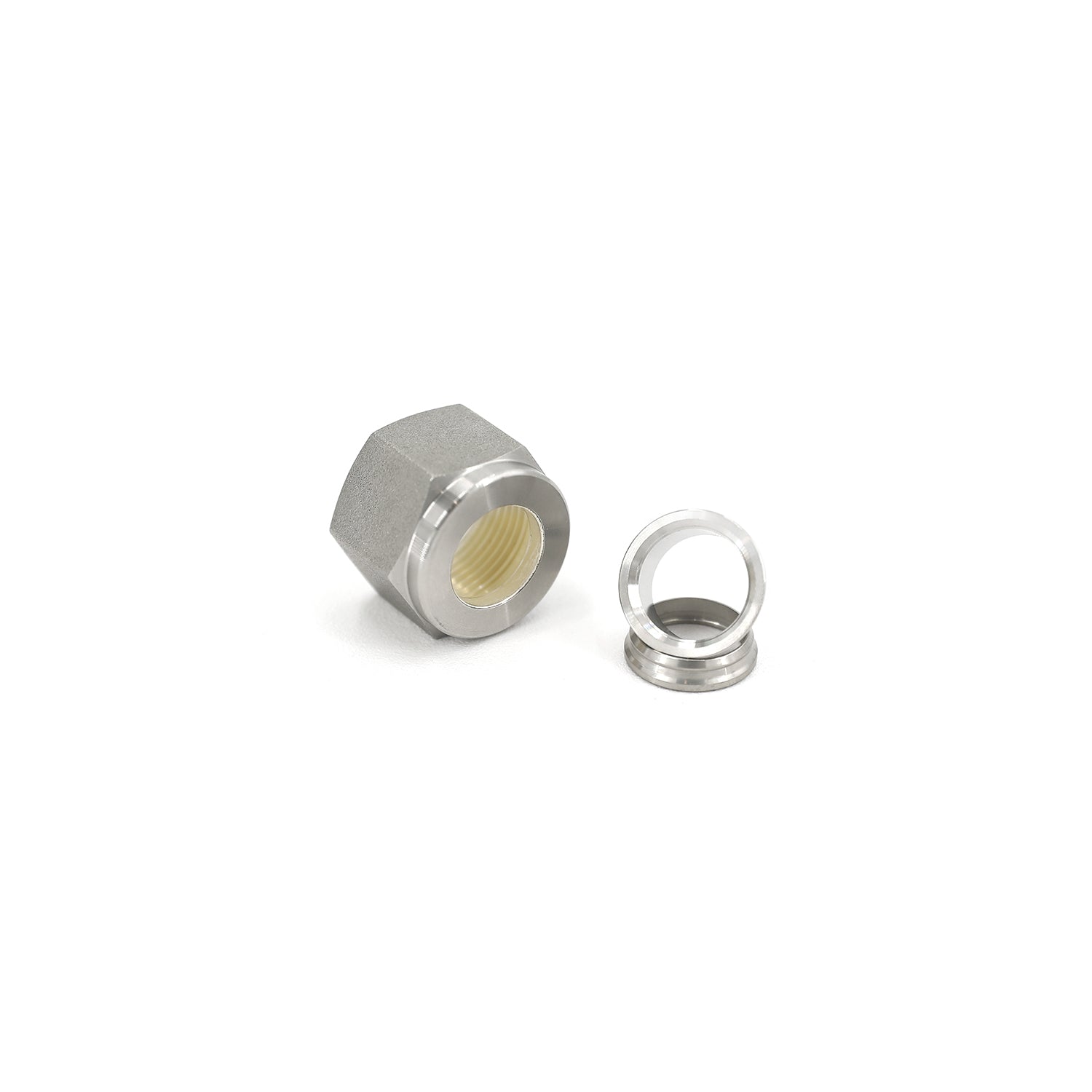

Nut-Ferrule Sets
The photos are intended to showcase the appearance and shape of the product, rather than its dimensions.
SKU:HJNZ-YZ4-SS
1000 in stock
Name: Nut-Ferrule Sets
Body Material: SS316
Port 1: Thread
Port 2: Ferrule
Design Pressure: 6000psig (414bar)
Working Temperature: -54℃-232℃(-65°F -450°F)
Medium: Liquid,Oil,Gas
Manufacturing Standards:
Bar Stock& Forging Material Machining
Silver Coating for Nut
Chemical Harden Process for Ferrules Involved
Ferrule connection threads and external threads are roll-threaded.
Applied Standard: SAE J1926-3, ASME B1.20.1 SAE AS71051
Remark：
Contact us for custom configurations. Please contact our professional sales consultant for uncleared techanical issues.
Small quantity: Recycled carton box.
Big quantity: Plywood case.
Bulk orders: Custom palletization available.
